Programmer Galcon GSI of 8 stations

€859.77
Tax included 3 a 7 días dependiendo del producto.
Stations
Current

Programming from anywhere in the world. With GPRS modem built-in.

Available in models for AC (up to 24 valves) and DC (up to 12 valves), and both with entries to the flow meter, counter fertilizer and rain sensor.
To be connected to a flow meter, the GSI has a system of alerts of high and low flow rates, leaks in the water network, etc



Política de seguridad



Política de envío



Política de devolución

Programador Galcon GSI. Control wifi del riego desde cualquier lugar del mundoGalcon GSI is a new line of controllers for irrigation are considered to be very easy to manage with a Web interface that allows the management of all green spaces, and facilitates the optimization of the irrigation programs for the landscaper and the gardener, professional.

The GSI is available in models for AC (up to 24 valves) and DC (up to 12 valves), and both with entries to the flow meter, counter fertilizer and rain sensor.

To be connected to a flow meter, the GSI has a system of alerts of high and low flow rates, leaks in the water network, etc

Models

  • GSI-DC-212: on-battery, and expandable to 12 stations.
  • GSI-AC-224: power 220 VAC and expandable to 24 stations.






PROGRAMMER GALCON G. S. I.

MODELProgrammer Galcon GSI
To battery and up to 12 est. / Current 220 VAC and up to 24 est.
Driver CC Controller-12 station + master valve, operated by a battery
Driver CA 24 stations + master valve, standard electrical connection.
Alarm Alarm notification in real time to your computer or Smartphone.
Interface The advanced interactive user interface provides a presentation of the state easy to access.
Reports Quick access to the information on the alarms; multiple records of irrigation, as well as reports of water use.
Detection of flows Detection capabilities of flow to allow the reaction to flows, both high and low, which can help to prevent unnecessary water loss and prevent equipment damage.
Irrigation programs Eight (8) irrigation programs with an unlimited number of start times.
Programmers Feature an LCD screen with basic (two-way) ‘online’ or field-based.


PROGRAMMER GALCON G. S. I. - 1 Demo Video



PROGRAMMER GALCON G. S. I. - the 2nd Video Demo








FEATURES AND ADVANTAGES

Saving technology
Advanced technology of saving battery consumption allows the driver to DC to be “out of line” while managing the ongoing activities of irrigation based on the ground, the reaction to the high flow/ low and the maintenance of irrigation records and reports on the use of water.

Security
Safe management ‘in-line’ irrigation: in any place and at any time.

Application in the cloud
The cloud-based application allows access from any computer with an Internet connection. Not require any software download or dedicated computer.

Installation
Easy installation, indoor and outdoor; flexibility of wall mounting, mounting on a pillar and mounting on pedestal.

Compatibility
Compatible with most valves of irrigation and solenoids for existing.

Updates
Firmware updates “over the air” (OTA).






Controller irrigation simple, Web-based, which facilitates the optimization of programs of irrigation for landscaping and gardening professional.
" Controller CC: Controller-12 station + master valve, operated by a battery.
" Driver AC: 24 stations + master valve, standard electrical connection.
" An advanced technology of saving battery consumption allows the driver to DC to be "out of line" while managing the ongoing activities of irrigation based on the ground, the reaction to the high flow/low and the maintenance of records of irrigation and reports on the use of water.
" Safe management 'in-line' irrigation: in any place and at any time.
" Access to and control of functions assigned to particular users and protected by a user password exclusive.
" The convenient user interface 'on-line' is easy to learn and simple to operate.
" The cloud-based application allows access from any computer with an Internet connection. Not require any software download or dedicated computer.
" Firmware updates "over the air" (OTA).
" Easy installation, indoor and outdoor; flexibility of wall mounting, mounting on a pillar and mounting on pedestal.
" Compatible with most valves of irrigation and solenoids for existing.
Driver properties:
" Alarm notification in real time to your computer or smart phone.
" The advanced interactive user interface provides a presentation of the state easy to access.
" Records and reports that provide fast access to the information on the alarms; multiple records of irrigation, as well as reporting of water use.
" Detection capabilities of flow to allow the reaction to flows, both high and low, which can help to prevent unnecessary water loss and prevent equipment damage.
" Eight (8) irrigation schemes with an unlimited number of start times.
" Irrigation scheduling based on plant type and adjustments based on the percentage
" Control and scheduling of fertigation.
" The drivers satellite equipped with an LCD screen with basic (two-way) 'online' or field-based.
" An advanced technology of saving battery consumption allows the drivers to satellite DC to be "out of line" while managing the ongoing activities of irrigation based on the ground, the reaction to the high flow/low and the maintenance of records of irrigation and reports on the use of water.
" Data modem and internal antenna built in.




Programador Galcon GSI

THE GSI IS A SMART SCHEDULER WEB-BASED



• Communication to the server via GPRS or Ethernet.

• Fast and simple installation - Starts working immediately.

• Full Control from any PC or Smartphone.

• Control of flow rate, water consumption and system alerts advanced.




Programador Galcon GSI

SYSTEM ARCHITECTURE



• Irrigation controller with cellular modem or integral connection to the Ethernet.

• Server GSI for irrigation control, scheduling, reports, and alerts.

• A PC or Smartphone connected to the internet.




Programador Galcon GSI

ARCHITECTURE OF THE cloud (CLOUD)



• Connection via internet with mobile or cable (Ethernet).

• Intuitive user interface from the browser .

• Sending of alerts by e-mail.

• Free App for mobile.




Programador Galcon GSI

FEATURES



• Available in model AC 220v to operate up to 24 valves.

• Output of fertilization by time, caudad, or proportional.

• Inputs for flow meter, meter fertilizer and sensors.

• Connection to the server by the Internet, Mobile GPRS or Ethernet.

• Control online 24 hours from any PC or Smartphone.

• Available in version farming or Gardening.

• Intuitive interface and easy to use.




Programador Galcon GSI

PLUG & PLAY



• Designed for gestionamiento from your PC.

• Easy installation and fast integration to the website.

• Automatic process of review of the connections to the valves.

• LCD display for reviews, manual opening of the valves and local programming.

• Automatic updates from the server.




Programador Galcon GSI

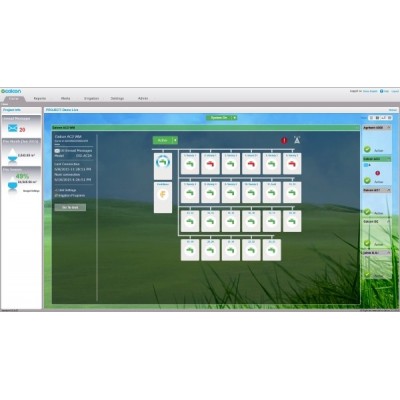

EASY USER INTERFACE AND FRIENDLY



• Different levels of administrators.

• Unlimited number of units in each project.

• Requires No software installation.

• Graphical presentation dynamic and intuitive.

• Full reports of the consumption of water in resolution of valves and days.

• History of irrigation, detailed.

• Automatic alerts and send email.

• Smartphone application (iphone and android).




Programador Galcon GSI

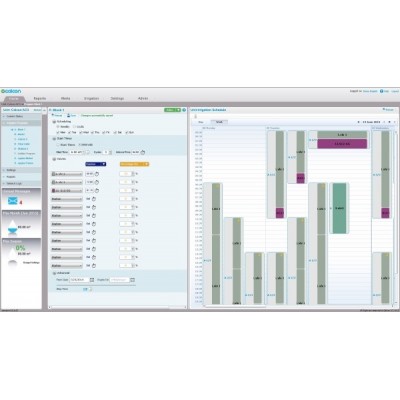

IRRIGATION SCHEDULING



• 8 irrigation programs (series) and unlimited logins per day.

• Straightforward presentation in the form of a calendar of the irrigation programs.

• History of irrigation of all the drivers of the project.




Programador Galcon GSI

AND FLOW CONTROL SYSTEM OF ALERTS ACTIVE



• System avanzadod of flow control.

• Alerts for high flow rates and low or total lack of flow.

• Alerts for water leaks.

• Alerts for low battery level and warning for failures in the communication.

• Alert for short-circuit and capacitor discharge.

All alerts appear in real time and are immediately sent by e-mail !! .




Programador Galcon GSI

NO CHARGES FOR MAINTENANCE COSTS



• Single payment in the purchase process.

• No monthly payments, extras.

• The agreement with the company of mobile telephony by the use of the GPRS under the responsibility of the dealer or the user.

• Cost differential of the drivers according to the number of outputs active and allowing to expand in the future.




Remote Control of an Irrigation Municipal



Galcon Smart brings the Internet to the modern world of irrigation.

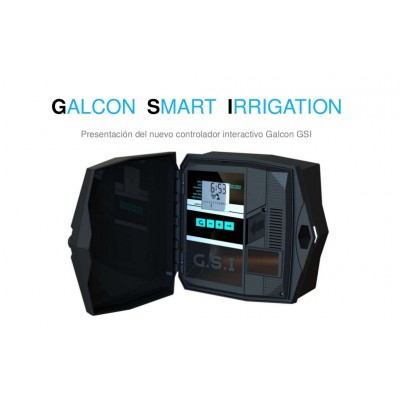

PRESENTATION OF the DEVELOPER G. S. I.



Programmers GALCON G. S. I wifi have been awarded with the prestigious Product of the Year by the EIA (European Association of Irrigation) for the GSI and the first to be recognized by the Environmental Protection Agency of the united States as a solution "WaterSense" approved for the system Cyber Rain.
Galcon Smart is redefining the industry of precision irrigation.






MANAGEMENT WITH IPHONE DEVELOPER'S G. S. I. GALCON



Galcon Smart is a new line of controllers irrigation based on WiFi, Bluetooth, Radio and Mobile Phones to market Gardening, Residential, Turf and Landscaping, and Agriculture.

GALCON G. S. I. - SLIDE show (USA)



Garden owners and farmers are already saving water and money with Galcon Smart, from the vineyards affected by the drought in the Napa Valley to the farms in Australia. Thousands of other customers are lowering costs and improving the beauty of their facilities with Galcon Smart in a variety of locations such as Fox Studios Hollywood, the tallest tower in Shanghai, Milan Expo 2015, famous resorts and hotels, colleges and universities, school districts, and many others. With any kind of weather.

GSI-DC-212

Download

Programador GSI Galcon

Características y especificaciones del programador GSI de Galcon basado en web.

Download (165.46k)

Programador GSI AC Galcon

Guía de usuario del programador GSI AC de Galcon basado en web.

Download (3.42M)

Programador GSI DC Galcon

Guía de usuario del programador GSI DC de Galcon basado en web.

Download (2.99M)
