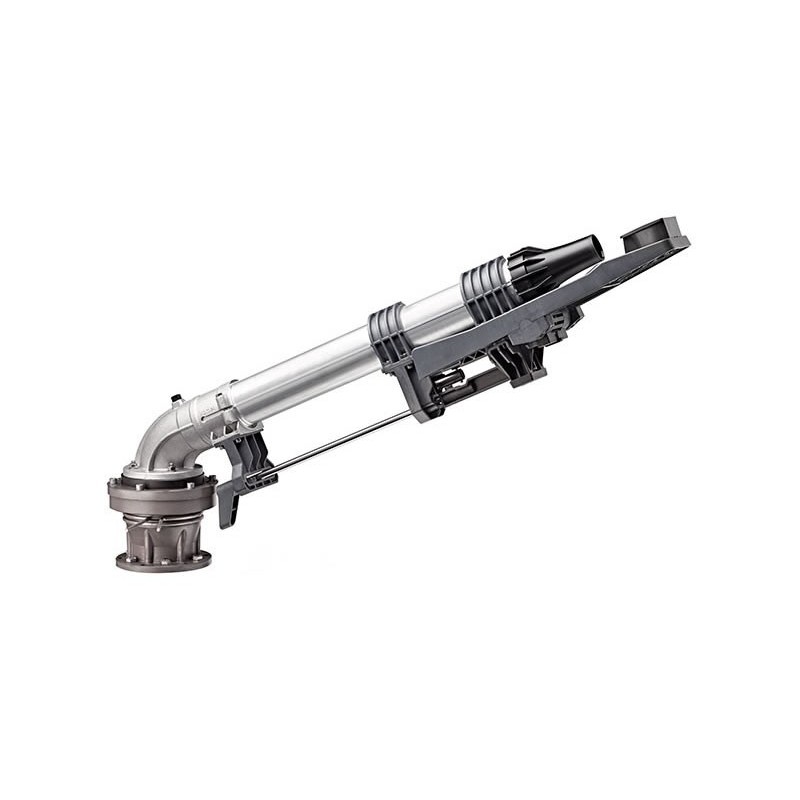

Canyon irrigation sprinkler KOMET 202 ULTRA for large open spaces sports.
The sprinkler cannon KOMET 202 ULTRA large radius is ideal for applications that require a jet longer, such as irrigation solely from the perimeter of sports fields, or for cleaning and cooling artificial turf. His unique breaking system adjusts automatically to varying pressures or nozzle configurations, to ensure a steady rotation speed for uniform coverage.
The innovative drive system adjusts automatically, ensuring steady rotation and uniform coverage at varying pressures.
Excellent uniformity using a single nozzle design (does not need nozzles short range).
The dispersed jet upon start-up reduces run-off and excessive watering.
Breaker jet with auto-tuning to vary distribution at lower pressures or to increase close-in watering.
Canyon sprinkler irrigation KOMET 202
41,5 – 90,0 m
Pressure of work
3,0 – 9,0 bar
Recommended working pressure
Scope according to the pressure recommendations.
32,4 - 235,0 m3/h
21 types of nozzles , from 22 mm to 45 mm
FEATURES AND ADVANTAGES
INNOVATIVE TRANSMISSION SYSTEM
It adjusts automatically, ensuring steady rotation and uniform coverage at varying pressures.
Single nozzle design (does not need nozzles short range).
RECOMMENDED OPERATING PRESSURE
Reduces run-off and excessive watering.
BREAKER JET WITH AUTO-TUNING
To vary distribution at lower pressures or to increase close-in watering.
The KOMET 202 does not need maintenance. The modern design avoids the use of ball bearings, which can griparse and fail in the presence of moisture.
The great versatility of the gun is enhanced even further with the groundbreaking of stream intermittent dynamic. The irrigation system operates at a lower pressure, which allows energy savings and reduces operating costs of the system.
The unique drive system allows a better diffusion of the jet. This greatly reduces furrows and run-off.
BRAKING FORCE ADJUSTABLE
The system self-adjusting adapts its braking force according to the pressure of the system at each moment. This is essential to achieve a uniform distribution of the irrigation.
1 | DISTRIBUTION
SYSTEM OF AUTOMATIC BRAKE
In the waiting position of the sprinkler rests by means of its segments of the brake higher on the disc of the brake.
Automatic regulation of force of braking.
> Ideal rotation to all the pressures.
With the increase of the operating pressure, the segments of brake lower are pressed against the brake disc, thereby generating a braking force.
Braking force is too high.
> Rotation speed too slow..
An operating pressure higher produces a greater braking force to compensate the force of rotation, most high, generated by the propulsion system.
Braking force is too low.
> Speed of rotation too high.
> Excellent uniformity distribution, from the sprinkler along the entire reach of the stream.
> Fits in your function at all levels and to variations of pressure.
2 | SCOPE
KOMET DYNAMICS OF FLOW
The deflector is designed to allow an excellent distribution of water with a laminar flow, thereby achieving a maximum range of the jet.
The tube Komet Twin is designed to allow the water to reach the nozzle with the least possible turbulences and pressure losses.
The singular form of the nozzle Komet allows the water to retain the maximum amount of speed out of the nozzle with a jet perfectly round, and making the scope that is unmatched.
3 | ENERGY EFFICIENCY - KOMET ENERGY SYSTEM
KOMET BALANCE SYSTEM
> The system Komet Balance is based on the interaction of the automatic brake with the baffle.
> The result is a balanced function that allows an excellent performance at all levels of pressure and flow.
> Balance interactive between the two elements is constant and automatic.
Speed of rotation constant at all pressure levels.
Optimized distribution of water to all pressure levels.
4 | RELIABILITY
The system of automatic brake is unique in its function, due to the materials used. The internal parts are made of stainless steel, chemically treated and inserted in an aluminum body, also chemically treated to increase resistance to corrosion and wear.
The tube, made of quality aluminium shipbuilding, is designed to maximize the reach and optimize the distribution. Lanes internal alignment are a result of intensive studies fluidodinámicos.
The mechanism of the arm is made of polymer technicians, which ensures top performance and excellent wear resistance, superior to that of aluminium. The reduced weight of the parts allows an optimum operational, even at low pressures.
• Diffusion of the jet is powerful and effective.
• Connection NPT female thread standard 50 mm (2”).
• Durable construction of high quality.
• Part and full circle in one model.
• Rotation speed adjustable.
KOMET 202 - TABLE OF YIELDS - TRAJECTORY 24 ° - METRIC
