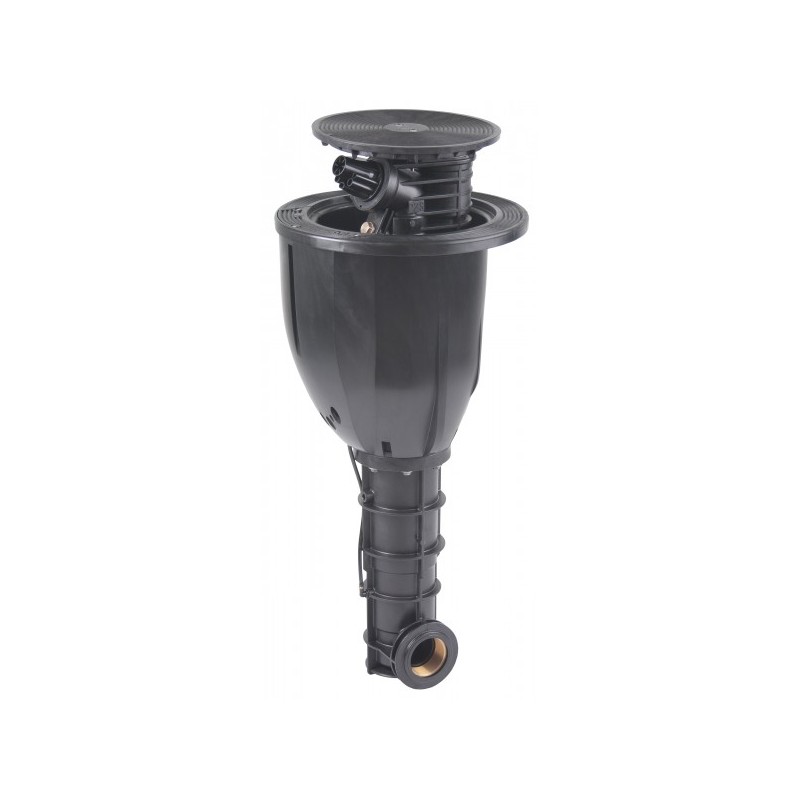

Canyon irrigation pop-PERROT VP3

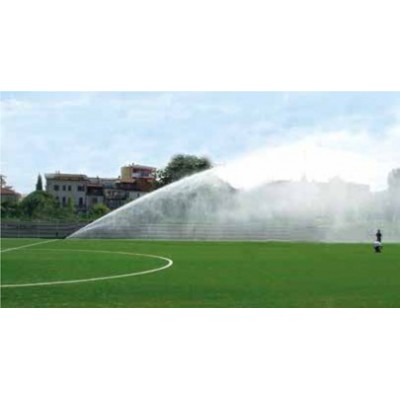

Canyon irrigation PERROT VP3 sprinkler pop-up valve-in-head for big open spaces sports: golf course, soccer fields, class fields, race track, parks...
Canyon irrigation PERROT VP3 sprinkler pop-up valve-in-head for big open spaces sports: golf course, soccer fields, class fields, race track, parks...
Supplied with nozzle of 20 mm
Operational Specifications
| MODEL | Canyon pop-up irrigation VP3 SIMPLE - TURF CAP - SECTOR SCOUT |
|---|---|
| Size of the nozzles | 16 - 20 - 24 mm |
| Pressure of work | 4 - 8 bar |
| Scope | 34 - 54 m |
| Adjustment of the sector |
0º - 360º |
| Flow | 23 - 65 m3/h |
| Angle of trajectory | 25th |
| Thread | Female 2" |
| Time of rotation 180 ° | 120 ° between 50 and 120 seconds at 4 - 8 bar |
| Installation height | From 528 to 720 mm (according to model) |
| Lifting height | 120 mm (depending on model) |
| Diameter outer casing | 350 mm |
| Diameter outer head | 256 mm or 267 mm (depending on models) |
CANYON PERROT VP3
FEATURES AND ADVANTAGES
SECTOR SCOUT
These sprinkler models initiate the irrigation, in parallel to the bottom line. The irrigation scheduling is based on the number of sectors that water, instead of setting the time of irrigation.
So that you can make use of the feature "Sector Scout" should be used with the programmer "Watercontrol" of Perrot.
REDUCES THE TIME OF IRRIGATION
The rotation of the barrel for an adjustment of the sector of 180 ° is 50 to 120 seconds, with pressures of 4 to 8 kg/cm2.
TECHNOLOGY IN NOZZLES
Nozzles with an intelligent design, that allows a smooth acceleration of the water flow with very low turbulence, from the entry to the exit of the nozzle. Because of this, there is a greater range and a reduction of water flow.
MODELS CANYON PERROT VP3
VP3

VP3
Nozzle 20 mm, valve-in-head.
Ref. RV25367
VP3 + Cover

VP3 + TURF CAP
Nozzle 20 mm, valve-in-head, with cover for installation in artificial grass.
Ref. RV25395
VP3 + Sector Scout

VP3 + SECTOR SCOUT
Nozzle 20 mm, valve-in-head, "Sector Scout".
Ref. RV25374
VP3 + Housing + Sector Scout

VP3 + TURF CAP + SECTOR SCOUT
Nozzle 20 mm, valve-in-head, "Sector Scout", with cover for installation in artificial grass.
Ref. RV25398
PERROT VP3 - TABLE OF YIELDS - METRIC
|
Pressure bar |
Nozzle 16 mm | Nozzle 20 mm | Nozzle 24 mm | |||
|
m3/h bpm |
m feet |
m3/h bpm |
m feet |
m3/h bpm |
m feet |
|
|
4,0 bar 58 psi |
25,9 431,3 |
34,0 111,50 |
30,10 601,02 |
40,0 131,10 |
48,70 214,50 |
42,0 520,51 |
|
5,0 73 psi |
29,00 438,08 |
37,0 121,30 |
40,40 672,84 |
42,0 137,70 |
54,40 239,60 |
44,0 545,45 |
|
6,0 87 psi |
31,70 239,65 |
40,0 131,10 |
44,30 737,86 |
45,0 147,50 |
59,60 262,60 |
49,0 607,45 |
|
7,0 102 psi |
34,30 571,16 |
42,0 137,70 |
47,90 797,58 |
48,0 157,40 |
64,40 283,70 |
52,0 644,49 |
|
8,0 114 psi |
Which represents 36,70 611,23 |
44,0 144,30 |
51,20 852,77 |
50,0 163,90 |
68,90 303,50 |
54,0 669,06 |
