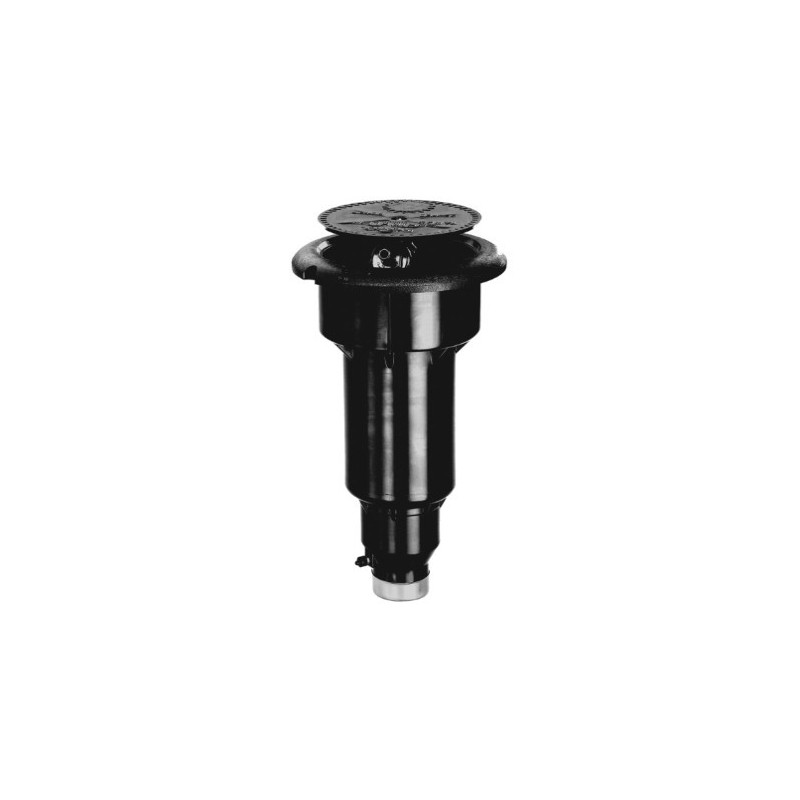

Sprinkler irrigation 690 TORO
For nearly 40 years the 690 series has been the standard of durability and reliability for commercial applications. The 690 Series is extremely robust: made of brass, stainless steel and engineering plastics, offers an unmatched performance in the most demanding environments.

For nearly 40 years the 690 series has been the standard of durability and reliability for commercial applications. The 690 Series is extremely robust: made of brass, stainless steel and engineering plastics, offers an unmatched performance in the most demanding environments.
- Entry: 37 mm (1½”) NPT
- Radius: 26,5–33,0 m (87’-108’)
- Working pressure: 80-150 psi (5,5–10,3 psi)
- Thread: BSP
SPECIFICATIONS
Dimensions
- Body diameter: 254 mm (10” )
- Height: 405 mm (16")
Operational Specifications
- Radius: 26,5–33,0 m (87’-108’)
- Flow rate: 193-311 lpm (51.0–82.2 GPM )
- Working pressure: 5,5–10,3 bar (80-150 ps (i)
- Lift height to nozzle: 20 mm ( ¾”)
- Inlet: 38 mm NPT ( 1½”)
- Check-O-Matic: it Retains a column of water of 11.2 m (37’)
- Solenoid valve in head: 24 VAC, 50/60 Hz.
- Consumption at start: 60 Hz; 0,30 amps.
- Current maintenance: 60 Hz, 0,20 amp.
- All internal components are accessible from above.
- Thread: BSP
![]() |

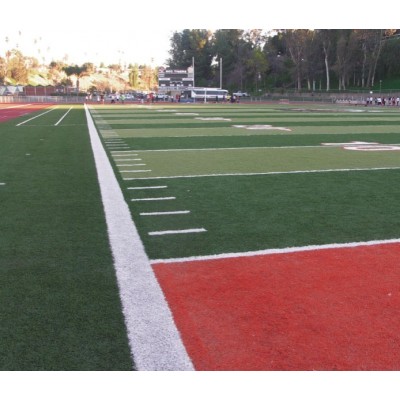

Artificial playing surfacesThe features of radius and flow are perfect for cooling and rinsing artificial playing surfaces such as football fields. |
