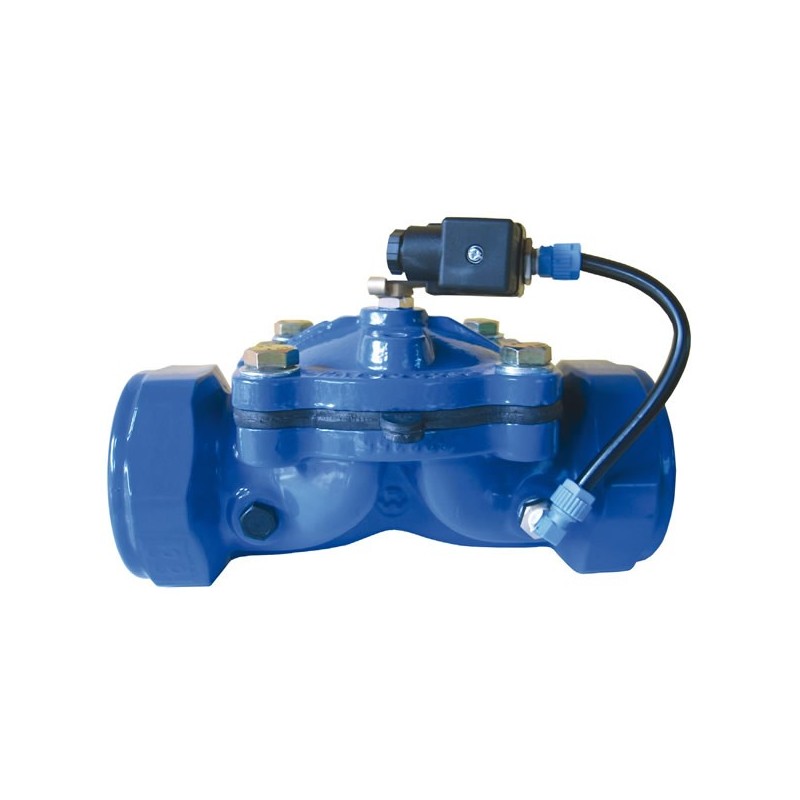

Solenoid valve Metal RAF for sports fields
Solenoid valve sport RAF operated hydraulically with the actuator and diaphragm closure, design on-line, and step direct.
The valves RAF are valves operated hydraulically with the actuator and diaphragm closure, design on-line, and step direct. The special design of its diaphragm
ensures its elasticity and airtight closure without the aid of a spring.
Exceptional performance
A single diaphragm for the entire range of pressures and regulatory functions.
The lack of spring, the opening of the diaphragm is not affected by variations of flow or pressure in line, so that its hydraulic characteristics
remain unchanged.
The particular design of the lid prevents the formation of pockets of air trapped in the chamber.
The diaphragm is not deformed nor elongates in regulation of pressure or in the action of opening or closing.
-
Dimensions:127x138x244 (height x width x length)
-
BodyCast iron GG25
-
CoverCast iron GG25
-
Nuts and BoltsZinc-plated steel
-
CoatingRilsan
-
DiaphragmNatural rubber reinforced
-
Maximum Working pressure16 bar
-
Temperature range-10ºC to 80ºC
-
Diameter3" Thread
-
Max flow rate on regulation70 m/h
-
Maximum flow rate recommended95 m3/h
-
Volume control0,16 litres
