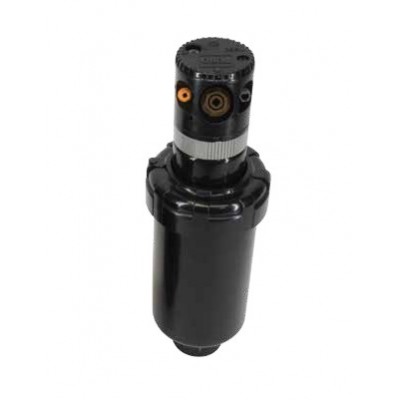

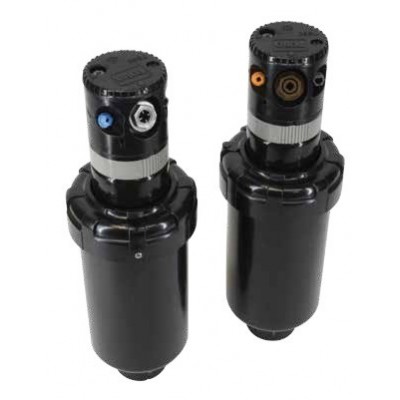

Sprinkler TS90 BULL Mini Cricket for big open spaces sports.

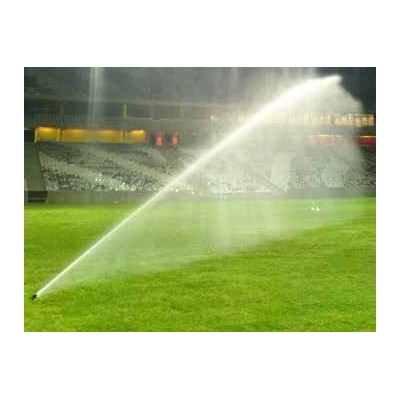

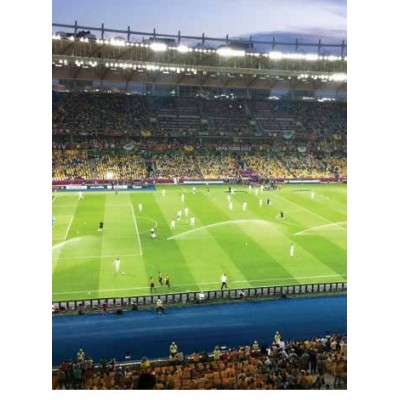

For large open spaces, the Toro TS90 includes features and performance only in a single fully adjustable rotor. Designed for large turf areas, its radius of 16.1-to 29-m is ideal for parks, sports fields, athletic fields synthetic turf and tracks for horse riding. In addition, the patented Trujectory™ Bull allows fine adjustments of the trajectory of the nozzle from 7° to 30°, to ensure a good wind resistance, and the spacing of the sprinklers.
| MODEL | Sprinkler TS90 BULL Mini Cricket without kit / with kit for lawn |
|---|---|
| Radio | 16,2–29,0 m with a background of 25° |
| Flow | 52,9 – 232,8 L/min |
| Rainfall | 14,2 – 15,2 mm/hr |
| Arc |
Part and full circle in one sprinkler Full circle: unidirectional rotation of 360° in the direction of the needles of the clock Part-circle: 40° – 330° |
| Full circle | unidirectional rotation of 360° in the direction of the needles of the clock |
| Partial circle | 40° – 330° |
| Speed of rotation | 3 minutes ± 30 seconds |
| Entry | 25 mm female thread - BSP |
| Pressure of work | 2,8 - 7,0 bar |
| Height | 254 mm |
|---|---|
| Total Height | 317 mm |
| Height Retracted | 216 mm |
| Height of Emergency | 100 mm |
| Exposed diameter of the cap | 57 mm |

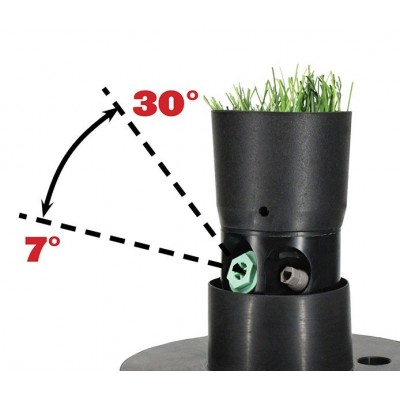

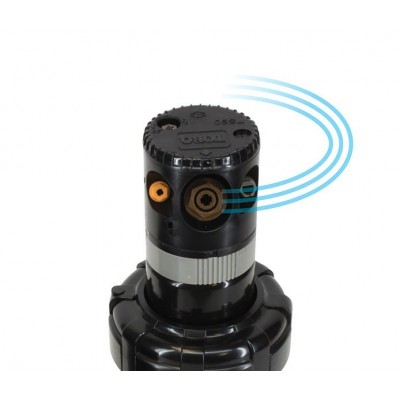

TRUJECTORY ADJUSTMENT FROM 7° TO 30°
Allows you to accurately set the height of irrigation,provides complete coverage between sprinklers and compensates for windy conditions.

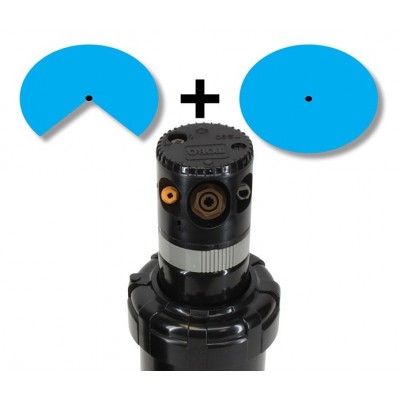

SECTOR AND FULL CIRCLE IN ONE SPRINKLER
There is No need to carry multiple models or games of spare parts different.
BACK NOZZLE CAPABLE
Perfect for perimeter of sports fields. This provides the flexibility to adapt to any requirement of irrigation.
STEM WITH RATCHETING
Allows you to adjust the position of the stem in the body without having to dismantle anything. Just pull the stem up and place it in the exact position in which you want water.

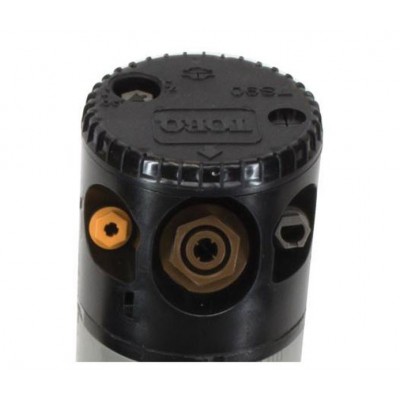

THREE NOZZLE CONFIGURATION
Greater uniformity of distribution, greater flexibility in the use of nozzles and system efficiency.
CONSTANT-VELOCITY DRIVE
Ensures a smooth rotation on all the sprinklers.

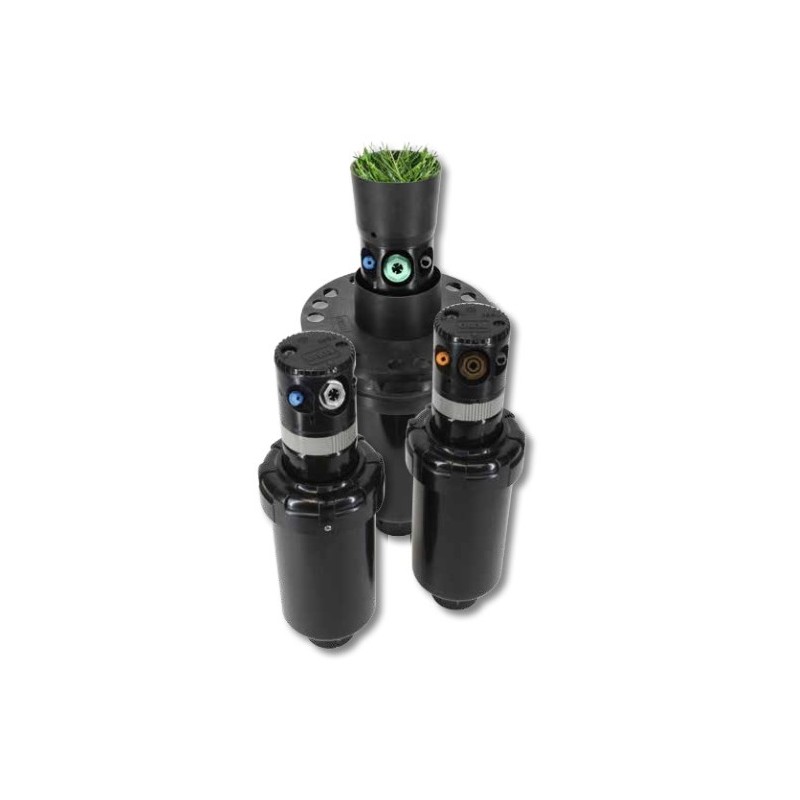

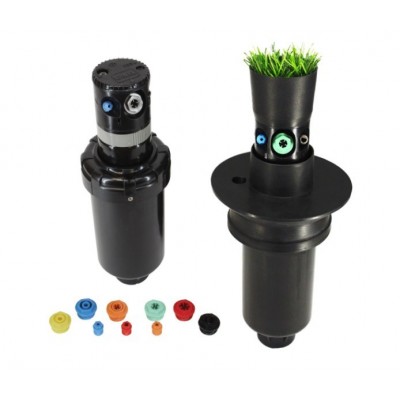

TURFCUP™ FOR SPORTS FIELDS
The version with optional TurfCup is fully integrated in the sports fields of natural grass or artificial turf, improving both the safety of the players, as the playability of the surface and aesthetics of the field.

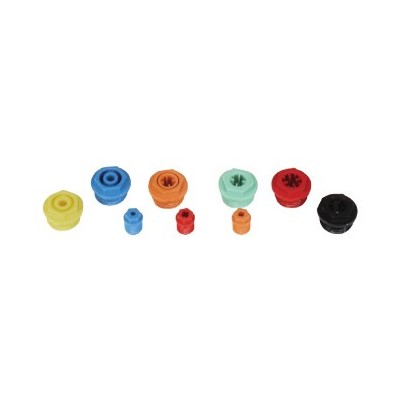

• Full set of coded nozzles for colors that are screwed directly on the front.
• Rubber cap and installation below ground level
• Check valve standard - maintains a column of water up to 3 m

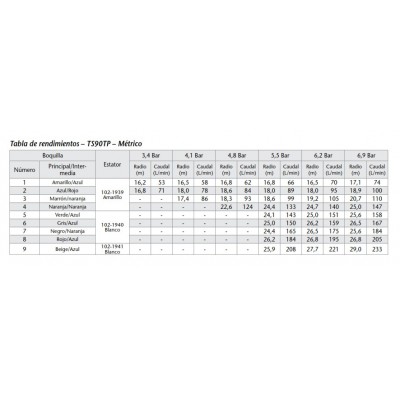

• Options of nozzle: 9 main, 3 intermediate, 1 inner
